Flow Control

Logic, routing, and event flow nodes.

Events

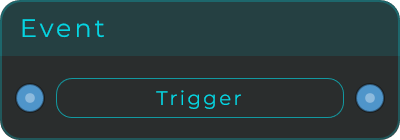

Event

Manual trigger button. Fires an event when clicked or when its input receives a signal.

Input: Trigger (Data) Output: Event (Data)

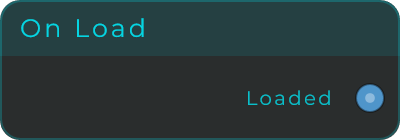

On Load

Fires a single event when the patch finishes loading.

Output: Loaded (Data event)

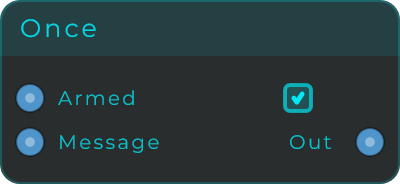

Once

Fires only the first time it receives a trigger. Ignores all subsequent triggers until reset.

Input: Trigger Output: Event (first time only)

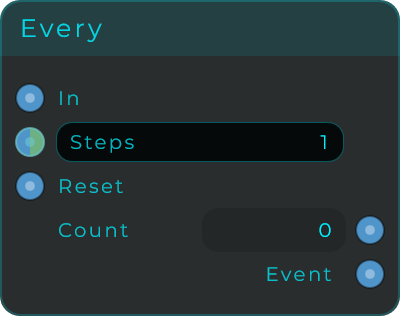

Every

Fires on every Nth trigger received.

Parameter	Range	Default	Description
Count	int	—	Fire every N triggers

Input: Trigger Output: Event (every Nth time)

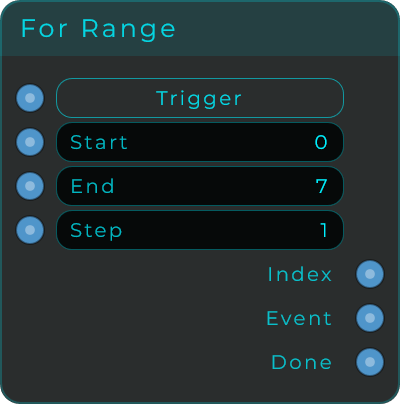

For Range

Fires a series of events with incrementing values. Like a for loop.

Parameter	Range	Default	Description
Trigger	Event	—	Start the loop
Start	int (unbounded)	0	Range start value
End	int (unbounded)	10	Range end value
Step	int (unbounded)	1	Increment per iteration

Outputs: Index (current value), Event (per iteration), Done (when finished)

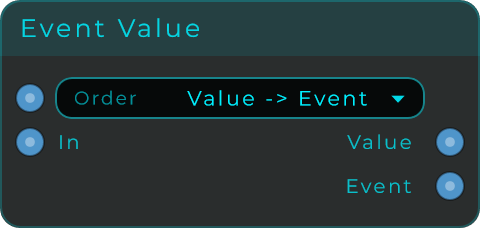

Trigger Value

Sends a value and an event together. Controls the ordering of value vs event.

Parameter	Options	Default	Description
Order	Value First / Event First	Value First	Which fires first

Inputs: Value Outputs: Value, Event

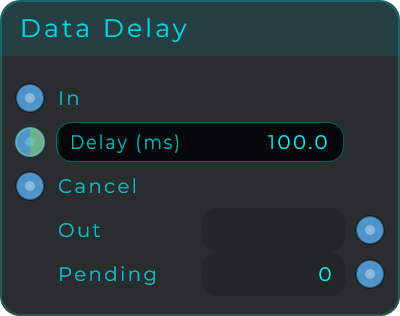

Data Delay

Delays a Data event by a specified time.

Input: Data event Output: Delayed data event

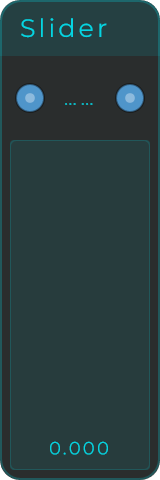

Slider

A simple data slider for manual value input.

---

Routing

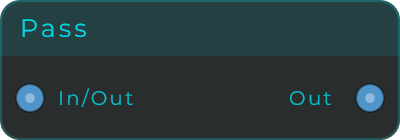

Pass

Passes data through unchanged. Useful for organizing cable routing.

Input: Any Data Output: Same Data

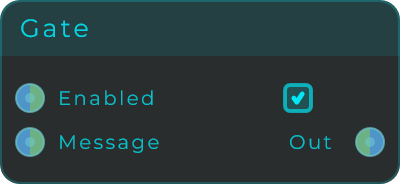

Gate

Passes or blocks data based on a boolean enable signal.

Parameter	Description
Enable	When > 0, data passes through. Otherwise blocked

Inputs: Data, Enable Output: Gated Data

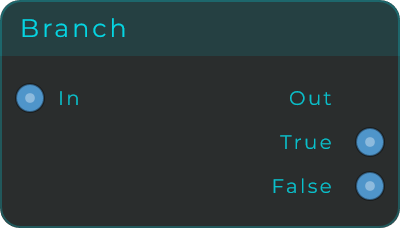

Branch

Routes data to one of two outputs based on a condition (if/else).

Inputs: Data, Condition Outputs: True output, False output

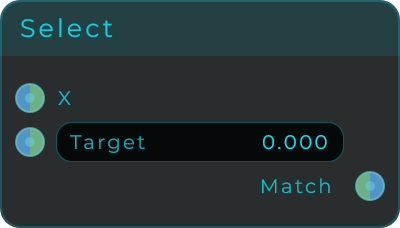

Select

Fires an event when the input matches a target value.

Inputs: Value (X), Target Output: Match event

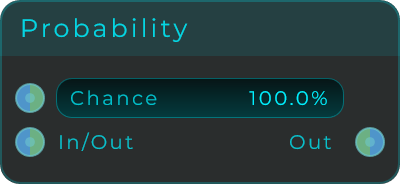

Probability

Passes data through with a configurable probability.

Parameter	Range	Default	Description
Chance	0.0 - 1.0	0.5	Probability of passing through (0 = never, 1 = always)

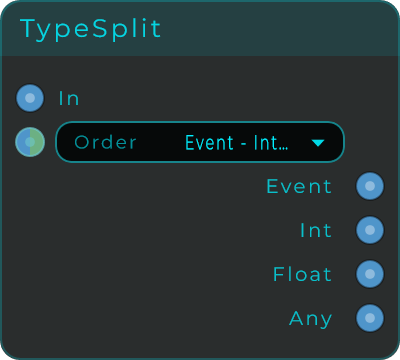

Type Split

Splits incoming data by type into separate outputs.

Input: Any Data Outputs: Float, Int, Bool, String, Bang (one per type)

---

State

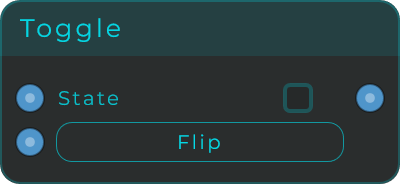

Toggle

Alternates between true and false on each trigger.

Input: Trigger Output: Bool (alternating true/false)

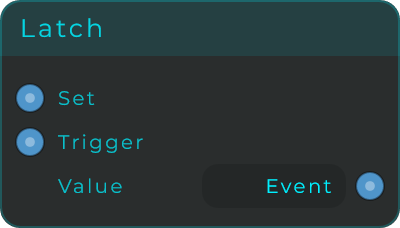

Latch

Holds a value until explicitly set to a new one.

Inputs: Value, Set trigger Output: Held value

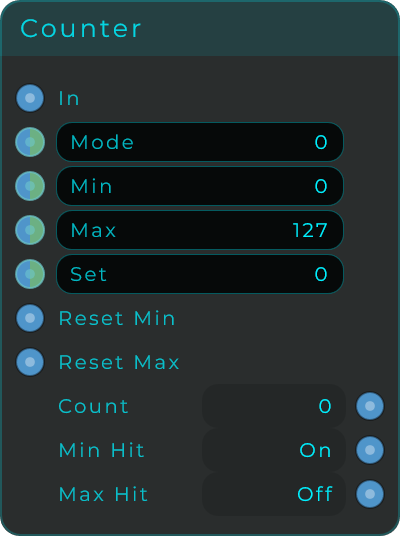

Counter

Counts trigger events with configurable range.

Parameter	Range	Default	Description
Min	int	0	Minimum count value
Max	int	—	Maximum count value
Step	int	1	Increment per trigger
Reset	Event	—	Reset to Min

Input: Trigger Outputs: Count, Wrapped event (when counter resets)

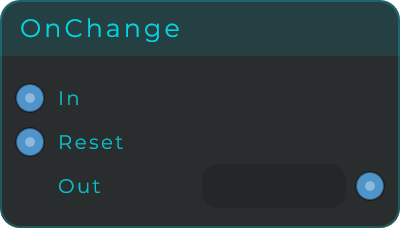

On Change

Fires only when the input value is different from the previous one.

Input: Any Data Output: Data (only when changed)

---

Files

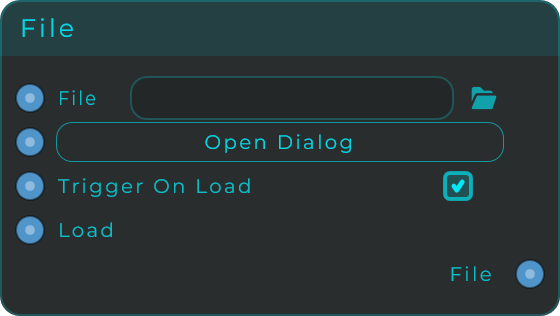

File

Load and read file contents from disk.

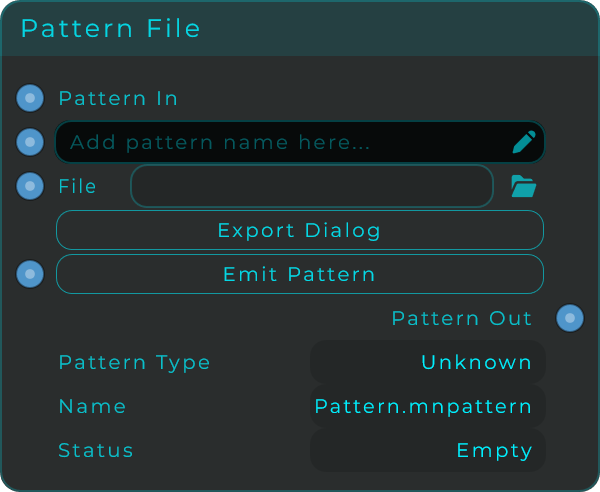

Pattern File

Load pattern data from files.
